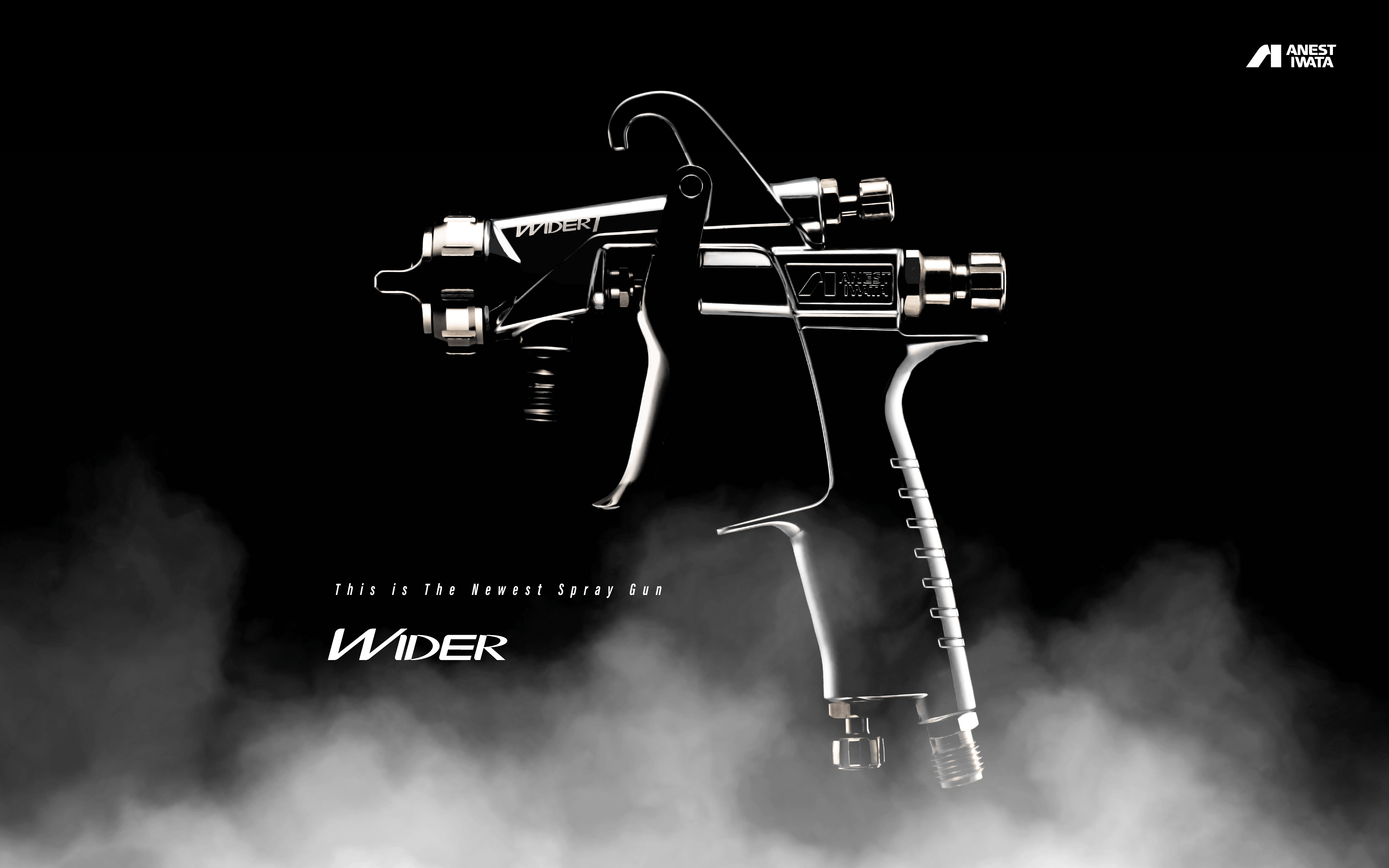

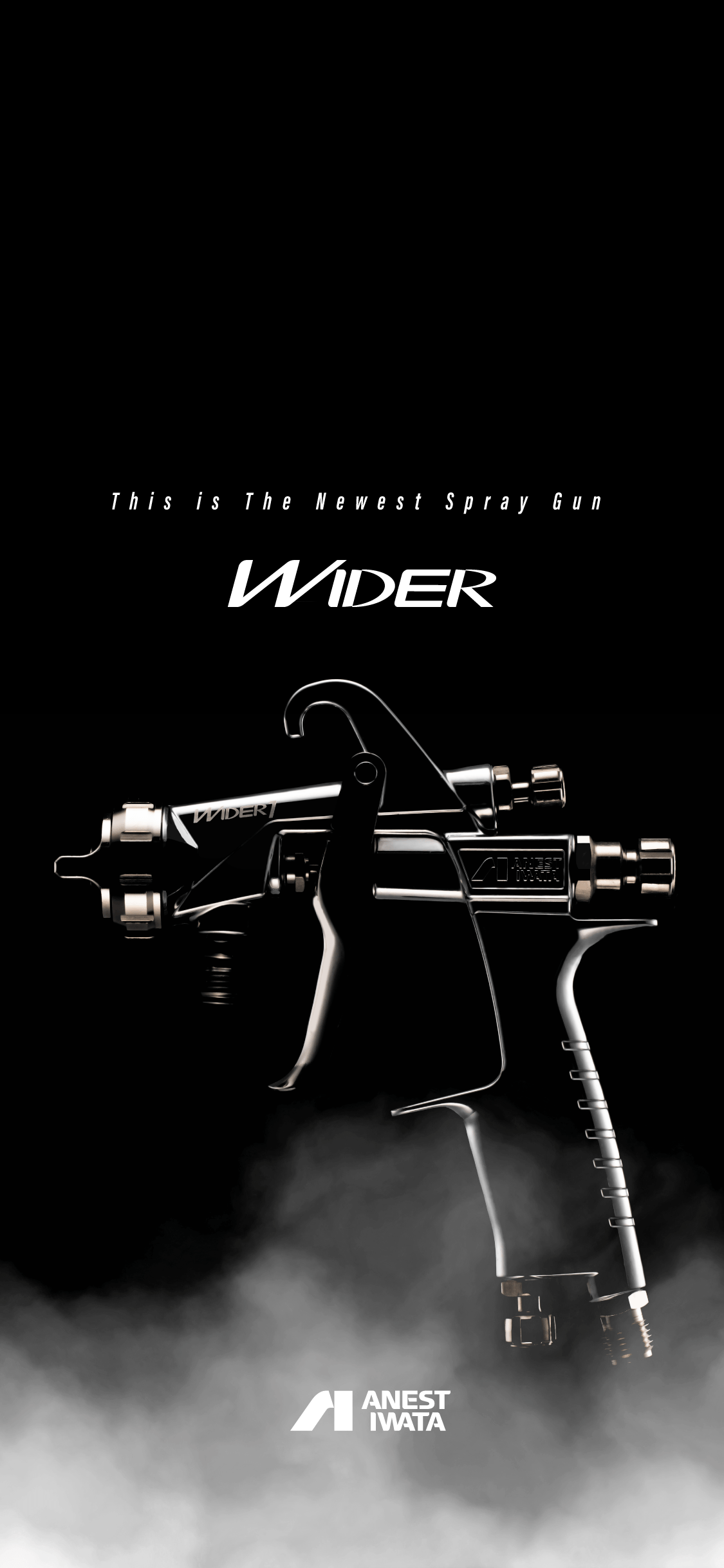

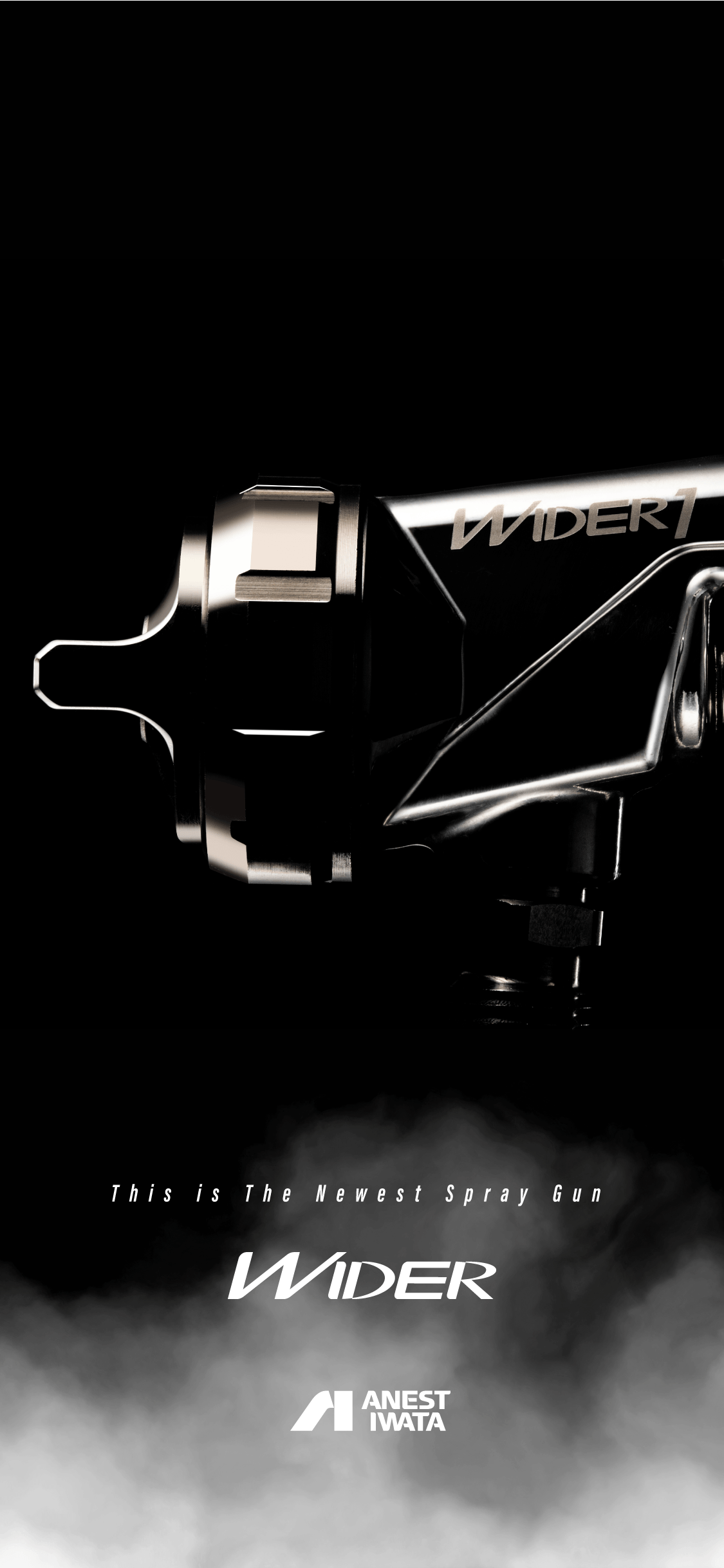

WIDER1 × WIDER2This is The Newest Spray Gun

NEW WIDER

Dependable quality Quality and Repeatabilitystability.
From “W” to “WIDER” Again.
The new model has arrived.

The key points in industrial coating products are quality and repeatability.
We have always created the ideal spray guns, adapted to diverse applications and evolving paints. Now, we have developed the new WIDER1 and WIDER2 models, which go further than ever in our pursuit of these key points. Our spray guns have penetrated markets around the world since the W-200 made its debut 22 years ago, and the W-101 14 years ago. We have distilled this experience and expertise that we accumulated over those years into this new WIDER model.

FEATURE01
DESIGN

Ergonomic Design with the
Focus on Functionality

In the course of applying an ergonomic design throughout, we also achieved a 5-g weight reduction. Every adjustment knob is tapered with deeper grooves, providing a surer grip for easier fine adjustments. We also built in a bushing into the back of the needle valve spring to make paint output adjustment smoother. The tip of the trigger has a smoother shape, for easier operation when applying lower paint volumes.

FEATURE02
MAINTENANCE

New Models Make
Maintenance Easier

The new WIDER is designed for easier maintenance. We changed the thread pitch of the cap from 1.0 mm to 1.5 mm, so that it can be screwed on with 1.5 turns, which is half as many as before. Also, the back end of the needle valve is reshaped to make it easier to remove and attach. By adding straight threadless sections to the air and fluid nipples, we made it easier to attach the connectors.

FEATURE03
FEEL

Linear Response
Pattern Adjustment set

The previous pattern adjustment set reached around 45% of full pattern width with 1 turn, around 80% with 1.5 turns, and almost 100% or nearly fully open with 2 turns. Our newly-developed pattern adjustment set now provides around 35% with 1 turn, around 50% with 1.5 turns, and around 70% with 2 turns. This linear response to adjustment is intuitively easier to operate.

FEATURE04
REPEATABILITY

Revised Air Valve Seat Sets for
a more consistent installation

Previous air valve seat sets consisted of a combination of large and small orifices in the air channel, so installing it into place could produce differences in air volume due to its’ position. This difference could potentially influence paint output and pattern width. We revised the design for the new WIDER, making the orifices much larger and more uniform so that installing the air valve seat set in produces more repeatable results. That enables even more consistent application.

WIDER1【Small Spray Gun】

SPEC

Previous
Model		 Model Type of feed Fluid Nozzle diameter
(Φ㎜)		 Atomizing air pressure
(MPa)		 Air consumption
(L/min)		 Fluid output
(mL/min)		 Pattern width
(㎜)		 Atomization Air Cap Weight
(g)		 Application
W-101-082P WIDER1-08E2P Pressure 0.8 0.29 270 150 190 High atomization E2P 290 Car OEM, Wood and furniture, metals, plastics
W-101-102P WIDER1-10E2P Pressure 1.0 200 220
W-101-132P WIDER1-13E2P Pressure 1.3 0.24 220 200 210 Wood and furniture, metals, medium-viscosity paints
W-101-152P WIDER1-15E2P Pressure 1.5 250 240
W-101-101S WIDER1-10E1S Suction 1.0 75 85 120 General atomization E1 Light industry, hobby
W-101-101G WIDER1-10E1G Gravity 1.0 95 130
W-101-131S WIDER1-13K1S Suction 1.3 145 150 155 General atomization K1 Automotive refinishing, Wood and furniture, metals, plastics
W-101-131G WIDER1-13K1G Gravity 1.3 160 170
W-101-132S WIDER1-13H2S Suction 1.3 225 150 160 High atomization H2
W-101-132G WIDER1-13H2G Gravity 1.3 160 175
W-101-134S WIDER1-13H4S Suction 1.3 0.2 210 140※ 180※ General atomization H4
W-101-134G WIDER1-13H4G Gravity 1.3 155※ 205※
W-101-151S WIDER1-15K1S Suction 1.5 0.24 145 175 170 General atomization K1 Wood and furniture, metals
W-101-151G WIDER1-15K1G Gravity 1.5 200 180
W-101-152S WIDER1-15H2S Suction 1.5 225 170 175 High atomization H2 Automotive refinishing, Wood and furniture, metals
W-101-152G WIDER1-15H2G Gravity 1.5 190 190
W-101-181S WIDER1-18N1S Suction 1.8 170 210 170 General atomization N1 Wood and furniture, metals
W-101-181G WIDER1-18N1G Gravity 1.8 240 190

●Spray distance : 200mm (for all models) ●Viscosity : 20s/NK-2. ●Air and fluid nipples : G1/4 (for all models)

WIDER2【Large Spray Gun】

SPEC

Previous
Model		 Model Type of feed Fluid Nozzle diameter
(Φ㎜)		 Atomizing air pressure
(MPa)		 Air consumption
(L/min)		 Fluid output
(mL/min)		 Pattern width
(㎜)		 Atomization Air Cap Weight
(g)		 Application
W-200-122P WIDER2-12G2P Pressure 1.2 0.29 500 500 400 High atomization G2P 375 Large parts and vehicles, line painting
W-200-151S WIDER2-15K1S Suction 1.5 200 240 210 General atomization K1 Wood and furniture, metals
W-200-151G WIDER2-15K1G Gravity 1.5 270 220
W-200-152S WIDER2-15K2S Suction 1.5 330 240 290 High atomization K2 Automotive refinishing, Wood and furniture, plastics
W-200-152G WIDER2-15K2G Gravity 1.5 270 320
W-200-182S WIDER2-18K2S Suction 1.8 330 290 340 High atomization K2
W-200-182G WIDER2-18K2G Gravity 1.8 320 380
W-200-201S WIDER2-20R1S Suction 2.0 260 350 260 General atomization R1 Metals, Wood and furniture, medium-viscosity paints
W-200-201G WIDER2-20R1G Gravity 2.0 410 280
W-200-202S WIDER2-20R2S Suction 2.0 360 350 290 High atomization R2
W-200-202G WIDER2-20R2G Gravity 2.0 410 320
W-200-251S WIDER2-25W1S Suction 2.5 360 440 280 General atomization W1 Metals, Wood and furniture, anti-corrosion treatment for steel frames, high-viscosity paints
W-200-251G WIDER2-25W1G Gravity 2.5 510 310

●Spraying distance : 250mm (for all models) ●Viscosity : 20s/NK-2. ●Air nipples : G1/4 and fluid nipples : G3/8 (for all models)

HVLP WIDER1L・WIDER2L

High Transfer Efficiency
and Optimized Atomization
At the Low Air Pressure Range

The major challenges of painting are reducing paint consumption and VOC. We developed unique air cap, nozzle, and spray gun body mechanism for achieving high transfer efficiency and optimized atomization at the low air pressure range.
Compared with our conventional models, HVLP spray gun can save 20％~30% paint consumption.
HVLP spray gun has realized less paint scattering. It contributes to improvement of working environment in terms of extended maintenance period of spray booth and less paint bounce back to painter.
HVLP spray gun is the compliant gun that must be operated with its internal pressure of the air cap at 0.069 MPa or less, as prescribed by South Coast Air Quality Management District in the United States of America, which is the world’s strictest in environmental regulations.

WIDER1L【Small Spray Gun】

SPEC

Previous
Model		 Model Type of feed Fluid Nozzle diameter
(Φ㎜)		 Atomizing air pressure
(MPa)		 Pressure in air cap
(MPa)		 Air consumption
(L/min)		 Fluid output
(mL/min)		 Pattern width
(㎜)		 Atomization Air Cap Weight
(g)		 Application
LPH-101-122P WIDER1L-12G2P Pressure 1.2 0.34 0.069 530 350 270 High atomization WIDER1L-G2 290
LPH-101-124LVS WIDER1L-2-12J2S Suction 1.2 0.1 0.049 200 60 170 WIDER1L-2-J2 Wood and furniture, metals
LPH-101-144LVS WIDER1L-2-14J2S 1.4 80 180
LPH-101-164LVS WIDER1L-2-16J2S 1.6 95 190
LPH-101-124LVG WIDER1L-2-12J2G Gravity 1.2 80 ※1 200 ※1 Automotive refinishing, Wood and furniture, metals
LPH-101-144LVG WIDER1L-2-14J2G 1.4 130 ※1 220 ※1
LPH-101-164LVG WIDER1L-2-16J2G 1.6 0.13 0.069 240 100 220

●Spraying distance : 200mm (for all models) ●Viscosity : 20s/NK-2. ●Air nipples : G1/4 and fluid nipples : G1/4 (for all models) ※1 Viscosity : 12s/NK-2.

WIDER2L【Large Spray Gun】

SPEC

Previous
Model		 Model Type of feed Fluid Nozzle diameter
(Φ㎜)		 Atomizing air pressure
(MPa)		 Pressure in air cap
(MPa)		 Air consumption
(L/min)		 Fluid output
(mL/min)		 Pattern width
(㎜)		 Atomization Air Cap Weight
(g)		 Application
New Model WIDER2L-10G2P Pressure 1.0 0.2 0.069 470 300 250 High atomization WIDER2L-G2 375 Large parts and vehicles, line painting
LPH-200-122P WIDER2L-12G2P 1.2 500 300
New Model WIDER2L-14G2P 1.4 500 300
WIDER2L-2-10G2P 1 430 100 330 WIDER2L-2-G2
WIDER2L-2-12G2P 1.2 130 350

●Spraying distance : 200mm (for all models) ●Viscosity : 20s/NK-2. ●Air nipples : G1/4 and fluid nipples : G3/8 (for all models)
